| basic data: | |
| make | GAC |

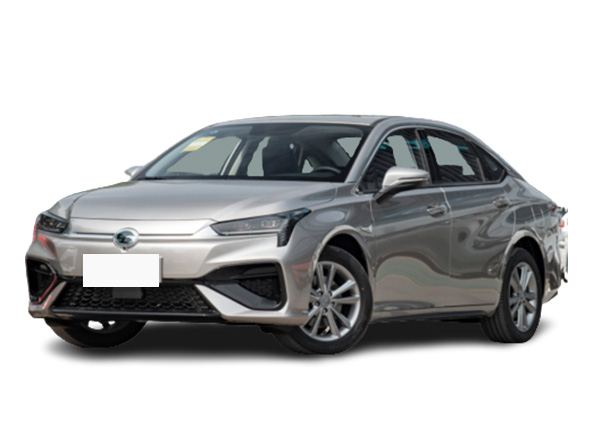

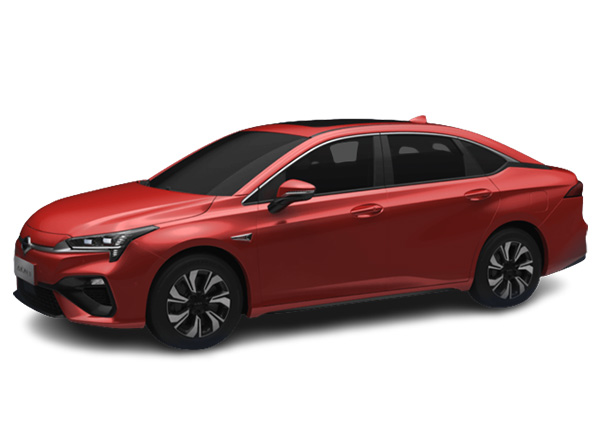

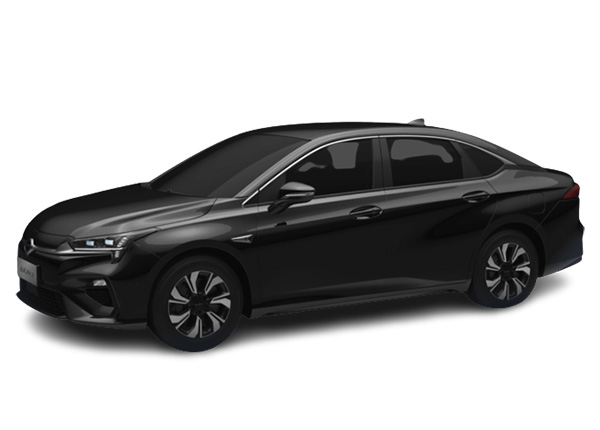

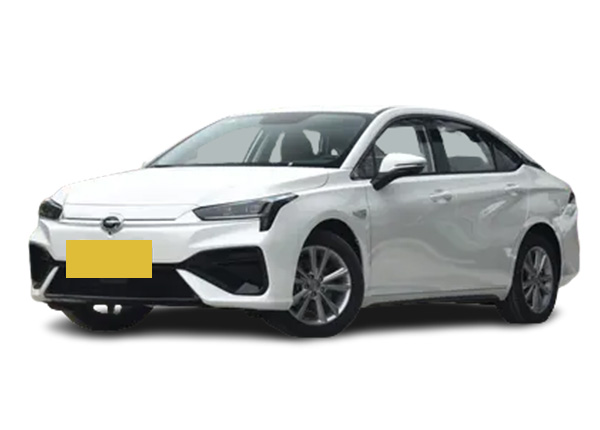

| model | AION S |
| car type | compact sedan |
| NEDC pure electric range | 460km |
| max power | 100kw/136hp |
| max torque | 225N.m |
| overalls | 4768x1880x1545mm |
| body structure | 4 door 5 seat sedan |
| max speed | 130km/h |
| car body: | |
| wheelbase | 2750mm |
| seats | 5 |
| rear trunk volume | 453L |
| curb weight | 1685kg |
| full load weight | 2135kg |
| motor: | |
| number | one |
| mounting | front |
| battery type | lithium iron phosphate |
| battery capacity | 60kwh |
| chassis: | |
| drive | FF |
| front suspension | macpherson |
| rear suspension | torsion beam |
| wheels & brake: | |
| front brake | vented disc |
| rear brake | disc |
| parking brake | electronic |
| tyres | 215/55 R17 |
| backup tyre | no |
| sunroof: openable panoramic sunroof | |
